PRODUCT FEATURES:
- Single Phase (1P2W) MID Certified
- Three Phase (3P4W) MID Certified
- MID Certified to Class C (0.5%) accuracy
- 1/5A Current transformer operated
- Total Harmonic Distortion (Amps)
- Total Harmonic Distortion (Volts)
- Highly visible backlit display from all angles
- Programmable reverse flow for right/left side of breaker CT installation.
- Built-in Modbus and Pulsed outputs

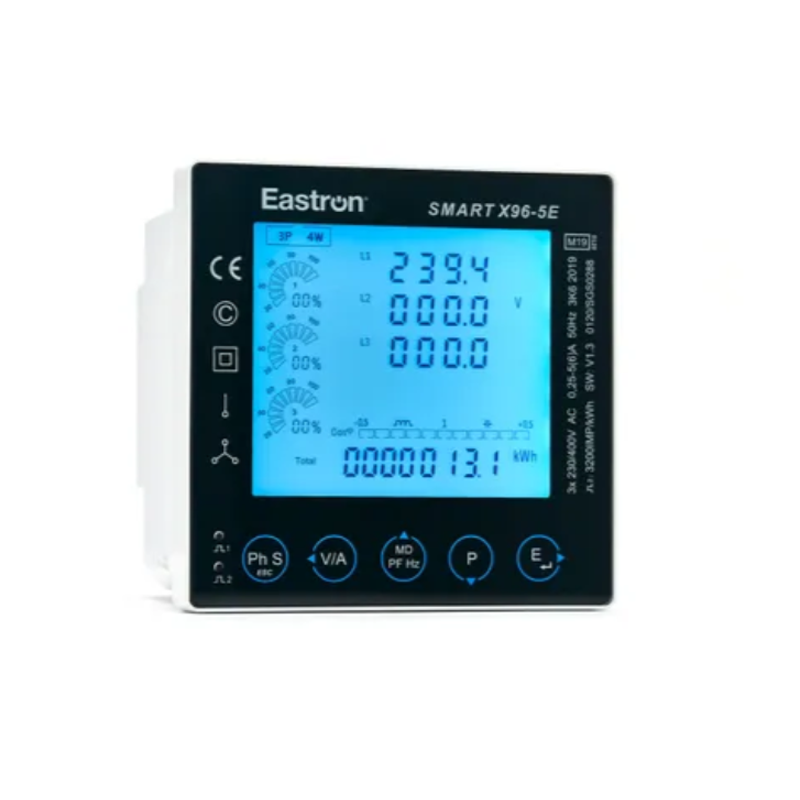

The Smart X96-5E is a high accuracy multifunction power meter that is a traditional wired 1/5A current transformer operated meter. Configurable for 1p2w, and 3p4w systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power, and Current Demand, Power Factor, Imported and Exported kWh, Phase Sequence and a Phase Summary page. It is one of the most user-friendly multifunction power meters in the market from installation to end client use. The SMART X96-5E does not have the Individual harmonics, internal three-phase supply (Powered from L1 & N internally), voltage output and can not be used in 3p3w applications.
It is typical in most installations that the current transformers are mounted on the left-hand side of the breaker so P1 is facing the correct way. However, it is also possible to mount the current transformer on the right-hand side with P2 facing the breaker. This is possible due to the meter having the option to reverse the flow to correct this type of application.
The SMART X96-5E requires mains voltage inputs and external current transformers in order to operate, it is self-supplied. The Smart X96-5E meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.
We have invested in MID B&D certification for the Smart X96-5, this proves the accuracy and quality of the product and allows it to be used for Billing Applications. Since April 2016, MID-approved Meters will be the only legal option when the measurements are to be used for billing. All of our MID-approved meters are certified here in the UK.
