METER INFORMATION: Single Phase 5A current transformer operated MID Certified (B and D) Bi-directional measurement for kW and kWh Configurable pulsed output (Import, Export, Nett kWh) RS485 Modbus Communications Multi-Parameter measurements Simple set up and operation ENCLOSURE FEATURES: 4 WAY IP65 Weather Proof CE Approved ABS Enclosure with Polycarbonate Lid Suitable...

The SDM120-MOD-MID is a Single Phase Digital Power Meter that measures a range of parameters in a 45A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to how cost-effective it is. Unlike other meters available on the market, this...

The SDM120A family of meters have been produced to offer a low-cost solution to metering low Amp circuits. The SDM120A range work directly connected to a maximum load SDM120A AC circuit. All versions of the SDM120A meter come with a pulsed output for remote monitoring. All SDM120A meters are housed...

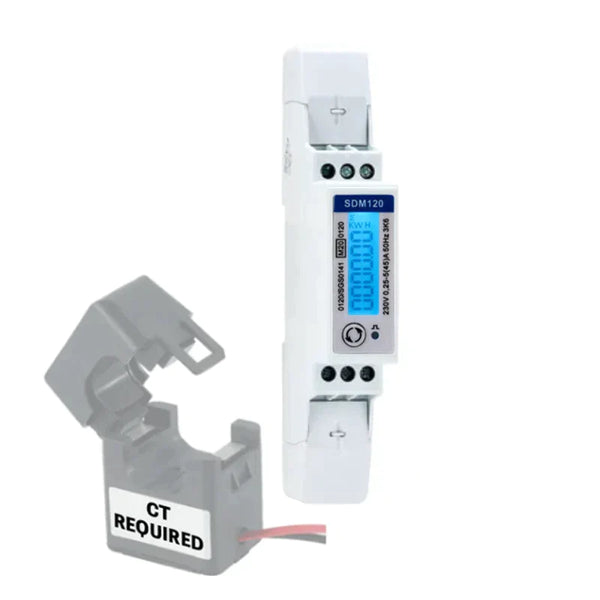

CURRENT TRANSFORMER SOLD SEPARATELY PRODUCT FEATURES: Single Phase 5A current transformer operated MID Certified (B and D) Bi-directional measurement for kW and kWh Configurable pulsed output (Import, Export, Nett kWh) Mbus Communications Multi Parameter measurements Simple set up and operation Din Rail Mounted The SDM120CT energy-meter, is used to measure single-phase...

CURRENT TRANSFORMER SOLD SEPARATELY PRODUCT FEATURES: Single Phase 5A current transformer operated MID Certified (B and D) Bi-directional measurement for kW and kWh Configurable pulsed output (Import, Export, Nett kWh) RS485 Modbus Communications Multi Parameter measurements Simple set up and operation The SDM120CT energy-meter “with a white back-lighted LCD screen for...

CURRENT TRANSFORMER SOLD SEPARATELY PRODUCT FEATURES: Single Phase 5A current transformer operated MID Certified (B and D) Bi-directional measurement for kW and kWh Configurable pulsed output (Import, Export, Nett kWh) Dual Pulsed Communications Multi Parameter measurements Simple set up and operation Din Rail Mounted The SDM120CT energy-meter, is used to measure...

The SDM120DB is a basic kWh meter with a fixed pulse output. This is a low cost solutionm for measutring low load circuits (45A rated) . All SDM120 meters are housed in a 1U Dinrail mounted housing. They also come complete with sealable terminal covers to stop any tampering with...

Call us on 01268 773 766 or email us at sales@jsgsolutions.co.uk for more information on this meter. Product Features: Single Phase 100A Direct connect Multifunction measurement, display scroll-able settings Support AMR, SCADA system Prepaid RFID Card function Energy re-settable White backlit LCD display Din rail mounting 35mm RS485 Modbus communication SDM320Y-MID is...

Product Features: Single or Three phase 100A Direct Connected MID B+D Certified Class B Accuracy Bi-Directional Measurement for Active Energy and Power Configurable pulsed output (Import/ Export and Nett kWh) RS485 Modbus Communication  Multi Parameter measurement Dual Tariff option available  3 Module DIN rail mounted The SDM54 measures and displays...

The SDM630-Mbus-MID is a Three Phase Digital Power Meter that measures a range of parameters in a 100A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand...

The SDM630-MOD-MID is a Three Phase Digital Power Meter that measures a range of parameters in a 100A AC Circuit, removing the need for additional current transformers. This particular meter has proven to be very popular due to the detailed measurements it can provide, such as Power Factor, Max Demand...

The SDM630MCTE-MID Digital Power Meter can be configured through the password-protected set up menu to work in Single or Three Phase circuits. The unit itself works in conjunction with 1A or 5A current transformers, allowing an easy installation especially when retro-fitting. We have also designed a simple, but effective panel-mounting...

The SDM630MCT Series is a three phase multifunction DIN rail meter. It can measure and display the characteristic of 1p2w,3p3w and 3p4w supplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset...

The SDM630MCT Series is a three phase multifunction DIN rail meter. It can measure and display the characteristic of 1p2w,3p3wand 3p4wsupplies, including voltage, current, power, active and reactive energy imported or exported. Energy is measured in terms of kWh, kVarh. Max demand current can be measured over preset periods of...

The SDM630MCT-MV Digital Power Meter can be configured through the password-protected set up menu to work in Single or Three Phase circuits. The unit itself works in conjunction with 333mV current transformers, allowing an easy installation especially when retro-fitting. We have also designed a simple, but effective panel-mounting kit which...

Product Features: 100A Direct Connected Modbus RS485 communication Total Active Energy (kWh) Three Phase (3p4w) 400V +/- 20% Measured Voltage 1000imp/kWh Pulsed output LCD Display 6+1= 999999.9 MID B+D certified The SDM72D-M-MID Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D...

Product Features: 100A Direct Connected Modbus RS485 communication Total Active Energy (kWh) Three Phase (3p4w) 400V +/- 20% Measured Voltage 1000imp/kWh Pulsed output LCD Display 6+1= 999999.9 MID B+D certified The SDM72D-M-MID v2 Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID...

The SDM72D Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications. Unlike other alternatives, this meter is housed in a...

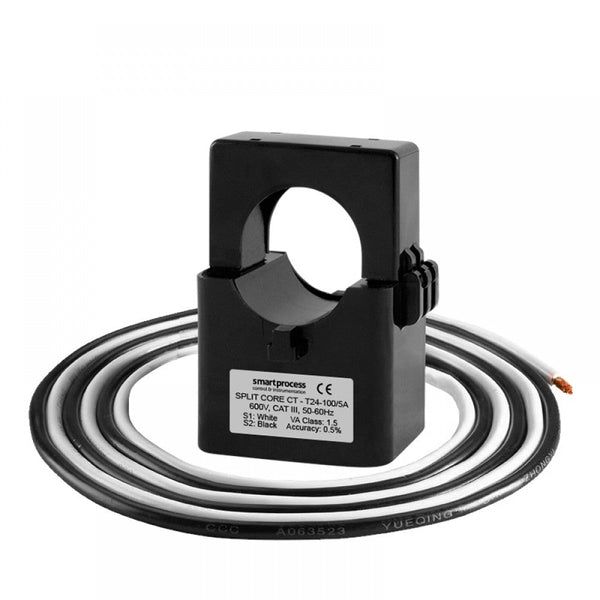

Product Features:  Split Core  Single Phase 24mm Aperture  100-250A Primary Current 5A Secondary Current 1m Fly Lead (2.5mm Wire)  Accuracy Class 1  The T24 Range of Split Core Current Transformers work in conjunction with any 5A CT Operated Electricity Meters. Due to the style of these Split Core Current transformers,...

Product Features:  Split Core  24mm Aperture  100-300A Primary Current 0.333mV Secondary Current 1m Fly Lead (2.5mm Wire)  Accuracy Class 1  This particular T24 Split Core Current Transformer works in conjunction with any 0.333mV CT Operated Electricity Meters. The output on these CTs is in millivolts, as opposed to the traditional...
